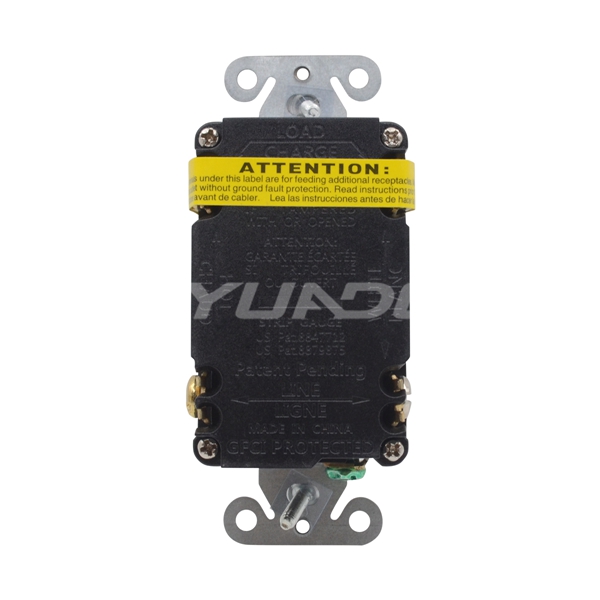

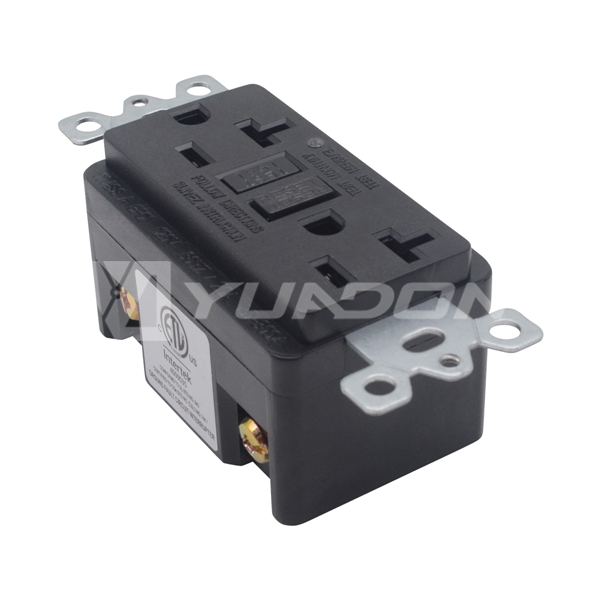

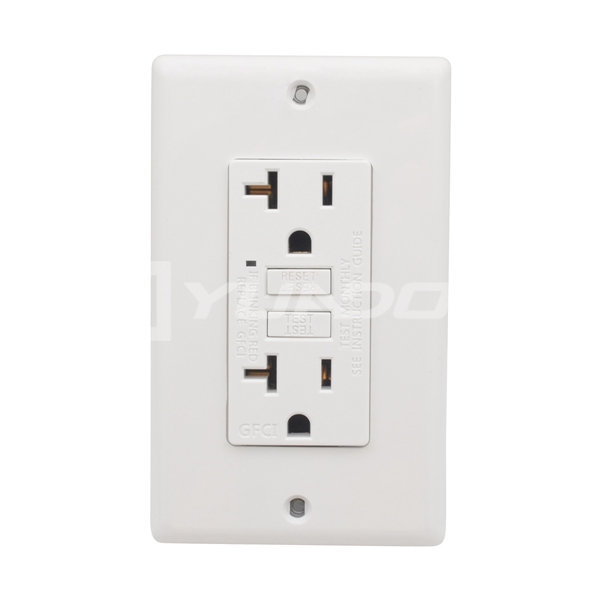

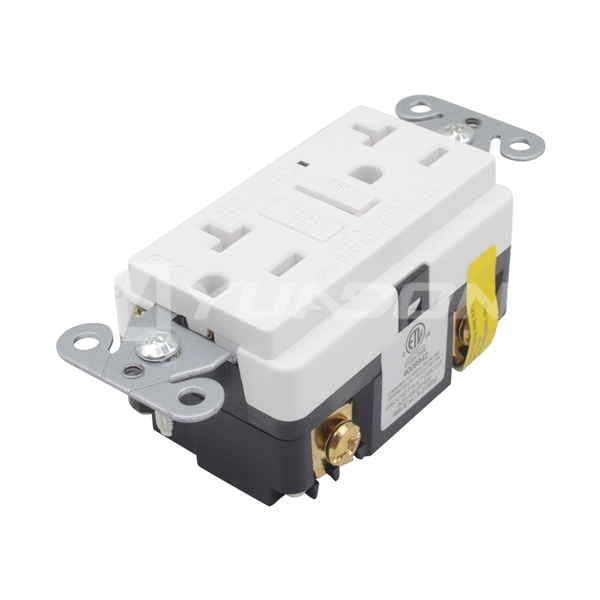

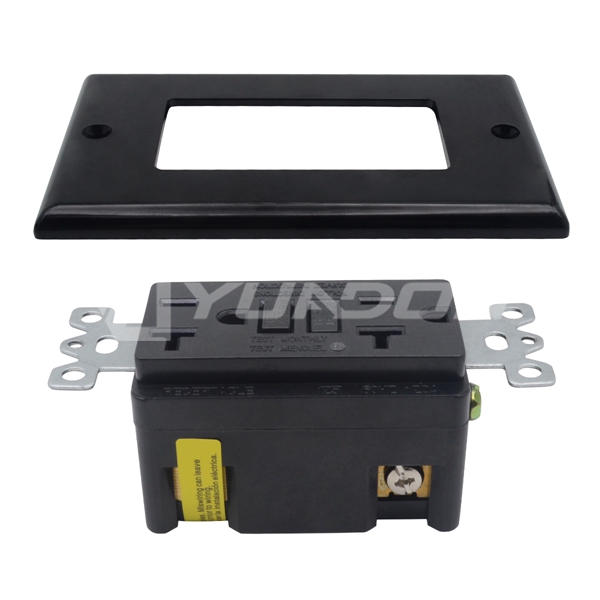

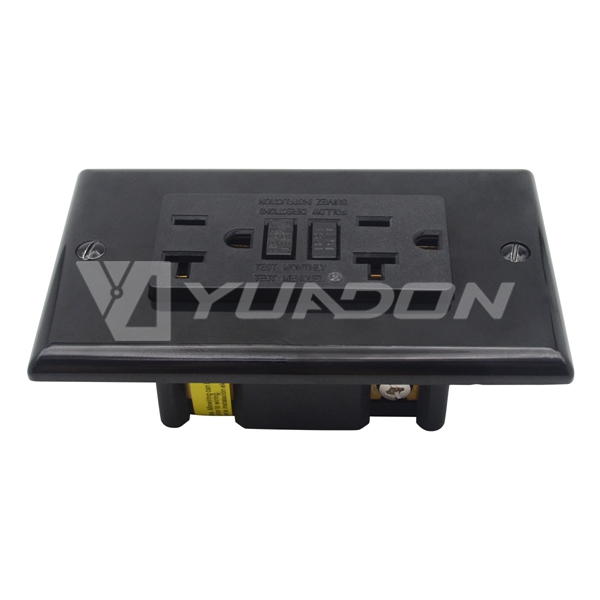

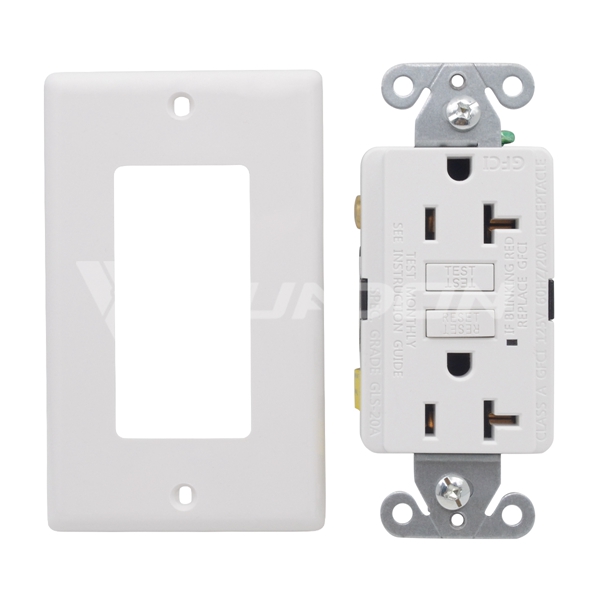

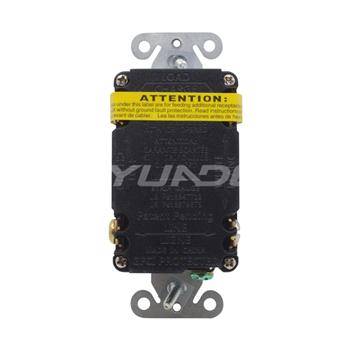

20 Amp GFCI Receptacle Outlet GFCI Duplex Receptacle

20 Amp GFCI Receptacle Outlet GFCI Duplex Receptacle Tamper Resistant wall receptacle gfci outlet NEMA 5-15R

  • Model number: YD-014-1

  • Rated Current/Voltage:  20A/125V

  • Certificate: ETL

  • Sample day: 1-3 days

  • Lead time: 7-10 days

  • Guarantee: 365 days

Production details



New Design 20A 125A ETL Approval Self Test GFCI Duplex Socket Receptacle Outlet for Protecting Electrical Circuit of Major Household Appliances

Basic Information

Item Name

YD-014-1

Type

GFCI receptacle

Rated Current

20 A

Rated Voltage

125 V

Socket type American type
Plastic Material PC+Nylon
Metal Material Copper

Certificate

ETL

Product size 105.2*42.8*44.9mm
Package 10pcs/box, 500pcs/carton=16KG

Sample day

1-3 days

Lead time

7-10days

Guarantee

365 days



Features

1. Item Name : 20A GFCI Duplex Receptacle Socket Outlet
2. It is with ETL certificate
3. Ratings: 125 Volts, 20 Ampere
4. It conducts an automatic test every three seconds to ensure that it's always ready to protect. If the device fails the test, the trip indicator light (red LED) flashes to signal that the GFCI should be replaced
5. It is equipped with Safe Lock protection: if critical components are damaged and lost protection, plug in devices will be disconnected for safety
6. Feed-thru wiring configuration allows it to protect downstream receptacles
7. It prevents line-load reversal wiring: no power to the face or downstream receptacles if wired incorrectly
8. Side or internal screw-pressure-plate back wire with #10-#14 AWG solid or stranded copper wire and two back wire holes per terminal
9. 10kA short circuit rating
10. Great for protecting the major household appliances

How to buy from us?

1. Please confirm the Products and quantities that you would like to purchase by contacting our sales persons.
2. We will send you a Proforma Invoice once we get your order list, and will help you calculate the best freight charge, by courier, by air or by sea if required.
3. After you send us the payment, please provide the bank copy if possible, so that we can start to arrange production asap.
4. As soon as the goods are shipped out, we will let you know the tracking number.
5. For after sales-service. Please contact the sales persons directly or contact us.

Notes

This charger adapter plug converts the power outlet only, Please don't use it with any high power appliances such as hair dryer, straightener and water heater. Please make sure your device carries an electrical converter when you travel to other countries with different electrical output.

Trade Condition

1. MOQ: 100 pcs / per model after sample order.

2. Payment Terms: T/T, Paypal and L/C for option.

a. By T/T: Bank transfer to YUADON company bank account
b. By Paypal: There will be 4% of total price as paypal fee.
c. By L/C(letter of credit): the order is more than USD10,000.

3. Shipment

We have a Strong cooperation with our forwarder, so we will give a best shipping cost to you
A. For small order, ship by DHL, EMS, UPS, FedEx international express.
B. For big order, ship by Air or by Sea.
