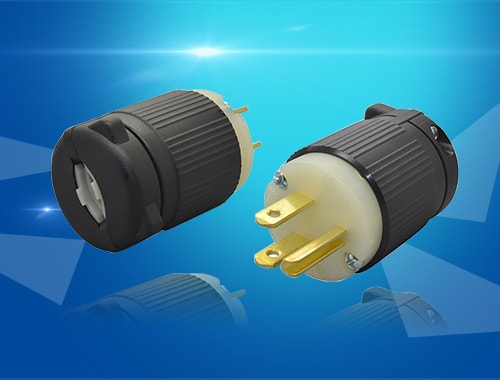

Something You Need to Know about Industrial NEMA Plug

  • source:yuadon
  • Date:04/29/2020

This product that has the full name of “15 Amp 125 Volt Industrial Grade Straight Blade Plug Nema 5-15P Rewireable American Plug” has been created specially to be used in the following locations: for industrial electrical equipment and medical equipment, it is important to note that it must not be used for home appliances. This type of product is described by Yuadon as a plug, a two-pole with ground pin, and has the standard 15 A electric outlet that is to be used and found in the United States, and in Canada  being CSA C22.


It comes in a neutral yet elegant black color, the material is nylon for the blade holder and clear polycarbonate for the retainer material. The terminal and ground screw material are both #8-32, with the ground one being green. This product is different from the competition because it is ROHS compliant.


Now we will list some of the main features of the Industrial NEMA plug.



1. Yuadon proud themselves on their products being made out of the best materials of high quality. This product is no exception as it is made with American Dupont nylon and 100% full brass pin.
2. The materials used are able to protect the product, for example the housing material and cord clamp material (both black colored nylon) are able to effectively encompass the piece from any damage caused from any type of fall or impact, abrasion and chemicals.
3. This product has quality certifications, like the UL or CUL certificate. The UL File Number is E350413 (Standard: UL 498).
4. The Rating of the product are the followings: the rampage is 15A, the voltage is 125V.
5. The standard description of this product would be it’s a Male, Electrical Straight Blade Plug and a Screw Type.
6. This type of product accepts the following size conductors: 10/3, 12/3, 14/3, 16/3, 18/3 AWG.



Now let’s talk a little about the company that designed and produced this product. Guangzhou Yuadon Electric Co., Ltd.(Yuadon in short) was established in 2009, in Guangdong province in China. They are a company that is production-oriented. Yuadon Electric company is able to stay so relevant on the market because they combine production, sales, research and development of integrated smart electrical accessories solutions.


Some of the main products that they manufacture are: high-grade power waterproof socket series, the global intelligent travel plug series, micro-power consumption intelligent security WI-FI control socket system, travel conversion plugs and sockets, power outlets, and more.


They are a great company as they are able to produce high quality products like the Nema 5-15 plug, and on top of that they have high quality certifications that ensure their products are trustworthy. Like it was described about the Nema 5-15 plug, all of their products have certification, such as the United States UL, CUL, the British BS1363, Sweden SEMKO, the European Union CE, ROHS, REACH, RASH, Germany TUV, Australia SAA, RCM, China CCC. Their high standards ensures that they have customers which are located in more than 150 countries and regions all over the world.
