20 Amp Electrical Plug, Locking Flanged Inlet American Standard Plug

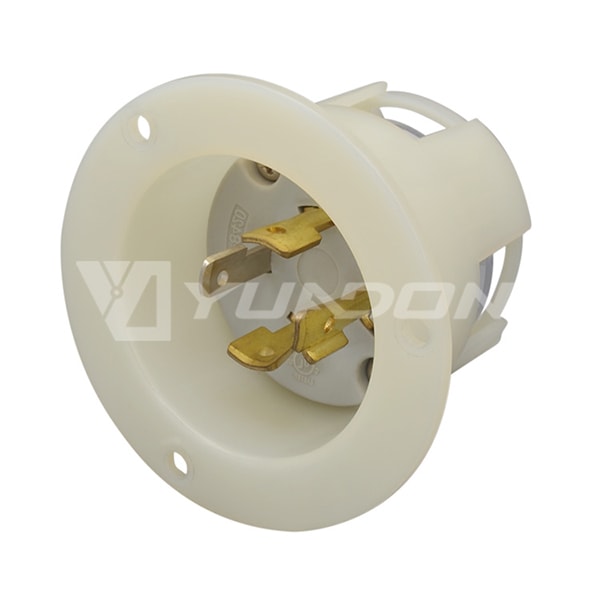

Nylon Copper NEMA L14-20P UL Locking Flanged Inlet American Standard Plug 02

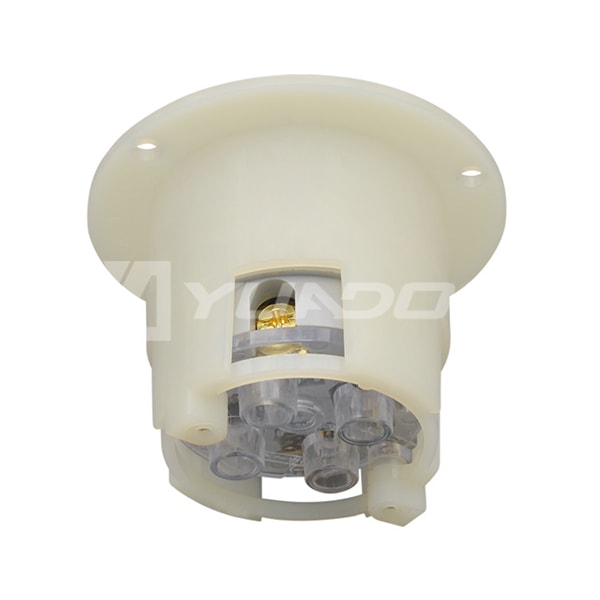

Nylon Copper NEMA L14-20P UL Locking Flanged Inlet American Standard Plug 03

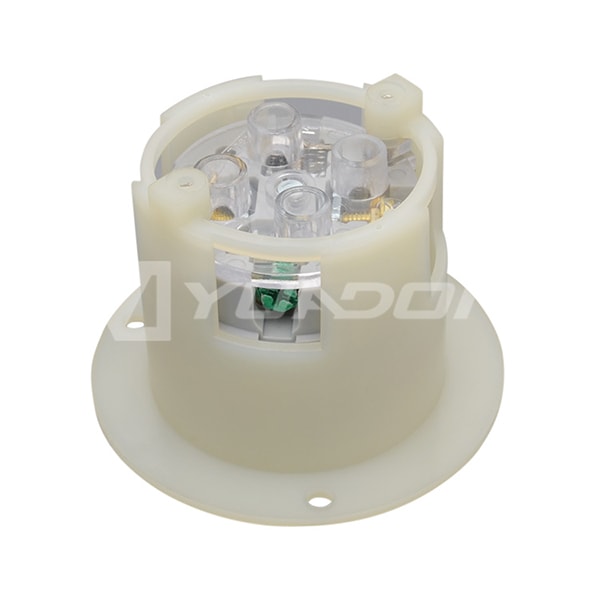

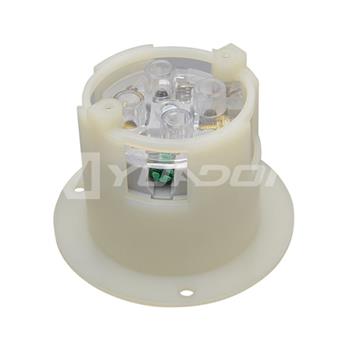

Nylon Copper NEMA L14-20P UL Locking Flanged Inlet American Standard Plug 05

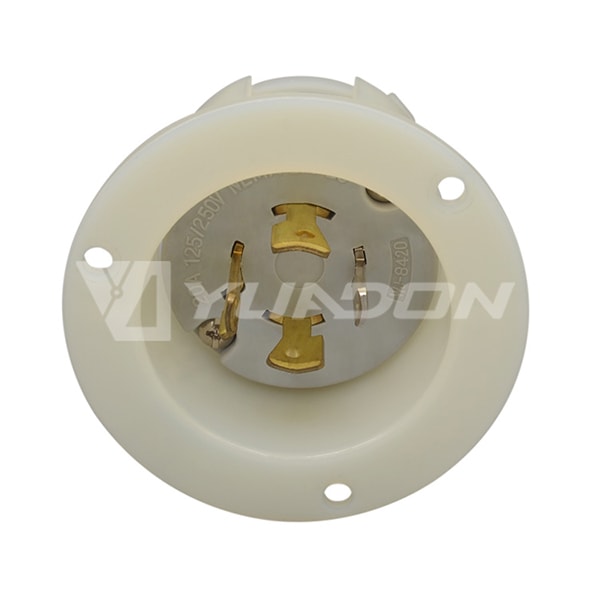

Nylon Copper NEMA L14-20P UL Locking Flanged Inlet American Standard Plug 04

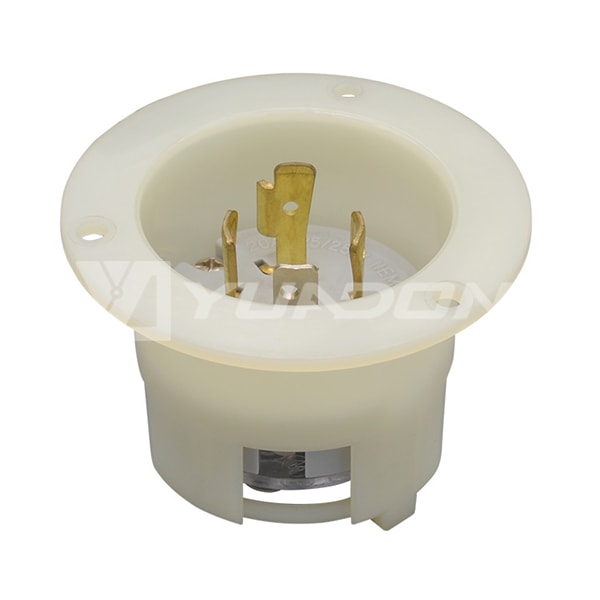

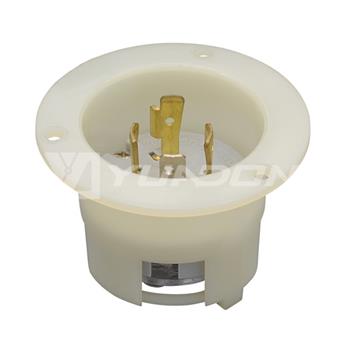

Nylon Copper NEMA L14-20P UL Locking Flanged Inlet American Standard Plug

  • Model number: YDA-L1420P

  • NEMA Configuration: L14-20P

  • Amperage: 20 Amp

  • Voltage: 250V AC

  • UL certificate: UL/cUL E350413

  • Sample day: 1-3 days

  • Lead time: 7-15days

  • Guarantee: 365 days

Production details



UL Listed 20 Ampere 125 / 250 Volt NEMA L14-20 ( L14-20P) Flanged Panel Mount Power Inlet 3 Pole 3 Wire Grounding (3P+E) Impact Resistant Dupont Nylon Body Industrial / Specification Grade, White

Basic Information

Product Item

Flanged Inlet

Model number

YDA-L1420P

NEMA Configuration

L14-20P

Wiring Scheme

3 Pole, 4 Wire Grounding

Amperage

20 Amp

Voltage

250V AC

Color

Black

Housing Material

Nylon-Black

Blade Material

Brass

Terminal Retainer Material

Gray Polycarbonate

Blade Holder Material

Clear Polycarbonate

Terminal Screw Material

#8-32 solid brass

Ground Screw Material

#8-32 solid brass (Green)

Listings

UL / cUL E350413

Rohs Compliant

Yes

Features

1.NEMA L14-20P 20 Amp Locking Flanged inlet with heavy-duty construction for maximum safety and reliability in the most extreme industrial settings.
2. It is certified by UL (CUL.CSA)
3. Made with Dupont Nylon ( imported from America) resists damage from severe impact, abrasion and chemicals
4. NEMA Configuration : NEMA L14-20P ,Fangled Inlet Style
5. Wiring&Connecting: 3-Pole, 4-Wire Grounding
6. Terminals Accept: 12/3, 10/3 AWG Size Conductor
7. Recommended Terminals Torque: 12-16IN. LBS
8. Supply with 3 mounting screws; overrall length: 3/8"
9. Thread Type: 8/32 steel mounting screws, corrision resistant.
10. One-year guarantee service.

How to buy from us?

1. Please confirm the Products and quantities that you would like to purchase by contacting our sales persons.
2. We will send you a Proforma Invoice once we get your order list, and will help you calculate the best freight charge, by courier, by air or by sea if required.
3. After you send us the payment, please provide the bank copy if possible, so that we can start to arrange production asap.
4. As soon as the goods are shipped out, we will let you know the tracking number.
5. For after sales-service. Please contact the sales persons directly or contact us.

Trade Condition

1. MOQ: 100 pcs /per model after sample order.

2. Payment Terms: T/T, Paypal and L/C for option.

a. By T/T: Bank transfer to YUADON company bank account.
b. By Paypal: There will be 4% of total price as paypal fee.
c. By L/C(letter of credit): the order is more than USD10,000.

3. Shipment

We have a Strong cooperation with our forwarder, so we will give a best shipping cost to you.
A. For small order, ship by DHL, EMS, UPS, FedEx international express.
B. For big order, ship by Air or by Sea.
