NEMA 5-15 Plug American Standard Plug NEMA 5-15P US Straight Plug Wiring Power Plug 02
NEMA 5-15 Plug American Standard Plug NEMA 5-15P US Straight Plug Wiring Power Plug 03
NEMA 5-15 Plug American Standard Plug NEMA 5-15P US Straight Plug Wiring Power Plug 04

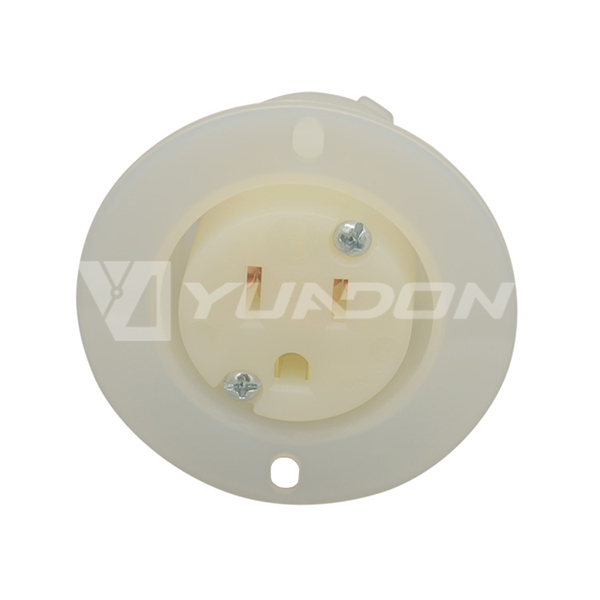

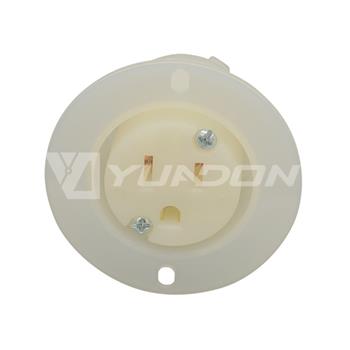

NEMA 5-15 Plug American Standard Plug NEMA 5-15P US Straight Plug Wiring Power Plug 05

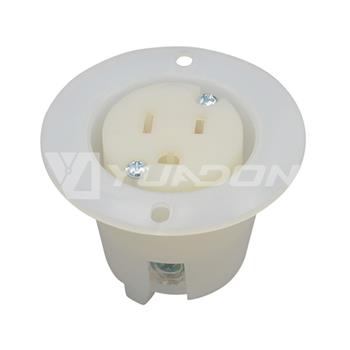

NEMA 5-15 Plug American Standard Plug NEMA 5-15P US Straight Plug Wiring Power Plug

  • Model number: YDA-515C

  • NEMA Configuration: 5-15R

  • Amperage: 15 Amp

  • Voltage: 125V AC

  • UL certificate: UL/cUL E350413

  • Sample day: 1-3 days

  • Lead time: 3-17days

  • Guarantee: 365 days

Production details



UL Listed 125-Volt 15-Ampere NEMA 5-15 ( 5-15P)  Flanged Power Inlet  Receptacle 2 Pole 3 Wire Grounding Straight Blade Plug Industrial Grade



Basic Information

Product Item

Flanged Outlet

Model number

YDA-515C

NEMA Configuration

5-15R

Wiring Scheme

2 Pole, 3 Wire Grounding

Amperage

15 Amp

Voltage

125V AC

Color

Black

Housing Material

Nylon-Black

Cord Clamp Material

Nylon-Black

Terminal Screw Material

#8-32 solid Brass

Ground Screw Material

#8-32 solid Brass(Green)

Contact Holder Material

Nylon-Natural

Power Contacts Material

040 (1.0m/m) Copper Alloy

Listings

UL / cUL E350413

Rohs Compliant

Yes



Product Features

NEMA 5-15 15 Amp Flanged Outlet with heavy-duty construction for maximum safety and reliability in the most extreme industrial settings.

Product Attributes

1.Dupont Nylon ( imported from America) resists damage from severe impact, abrasion and chemicals
2.Configuration : 2-Pole, 3-Wire Grounding, NEMA 5-15P Power Inlet
3.Certified by c( UL)us and UL file number is E350413 (Standard: UL 498)
4. Ratings: 15A, 125VAC, AC 60HZ
5.It is suitable for industrial indoor and outdoor applications.
6. It has a NEMA Type-3R Enclosure Rating ensuring superior protection against rain, sleet and damage from external ice formations.
7.Easily mounts to panels or FS/FD boxes for a seamless user experience.
8.It is available with standard wire wells or with slots that accept fork terminals.
9.The large thumb-tab style makes it easy to open the cover with a gloved hand which is a time saver ,no matter the application.

How to buy from us?

1. Please confirm the Products and quantities that you would like to purchase by contacting our sales persons.
2. We will send you a Proforma Invoice once we get your order list, and will help you calculate the best freight charge, by courier, by air or by sea if required.
3. After you send us the payment, please provide the bank copy if possible, so that we can start to arrange production asap.
4. As soon as the goods are shipped out, we will let you know the tracking number.
5. For after sales-service. Please contact the sales persons directly or contact us.

Trade Condition

1. MOQ: 100 pcs / per model after sample order.

2. Payment Terms: T/T, Paypal and L/C for option.

a. By T/T: Bank transfer to YUADON company bank account
b. By Paypal: There will be 4% of total price as paypal fee.
c. By L / C (letter of credit): the order is more than USD10,000.

3. Shipment

We have a Strong cooperation with our forwarder,so we will give a best shipping cost to you.
A. For small order, ship by DHL, EMS, UPS, FedEx international express.
B. For big order, ship by Air or by Sea.
