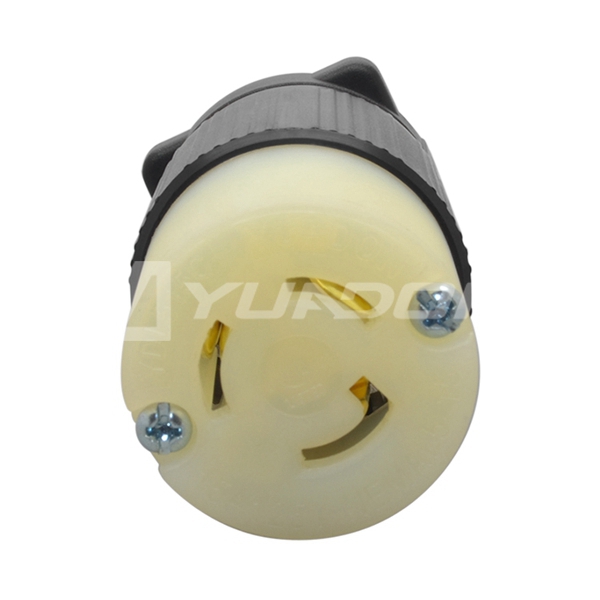

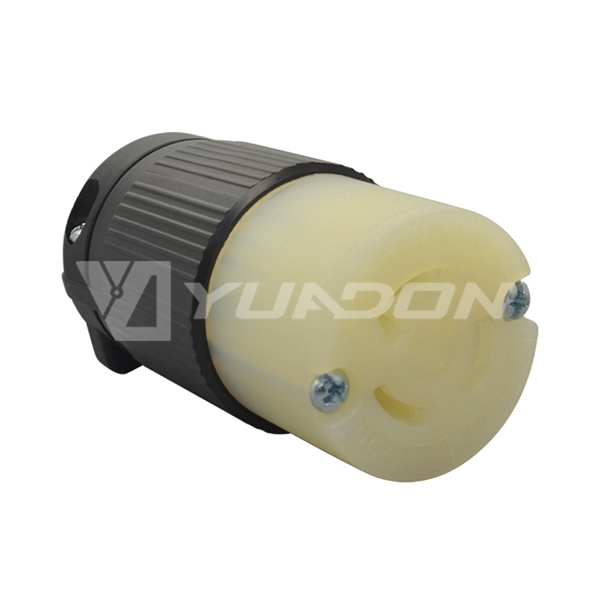

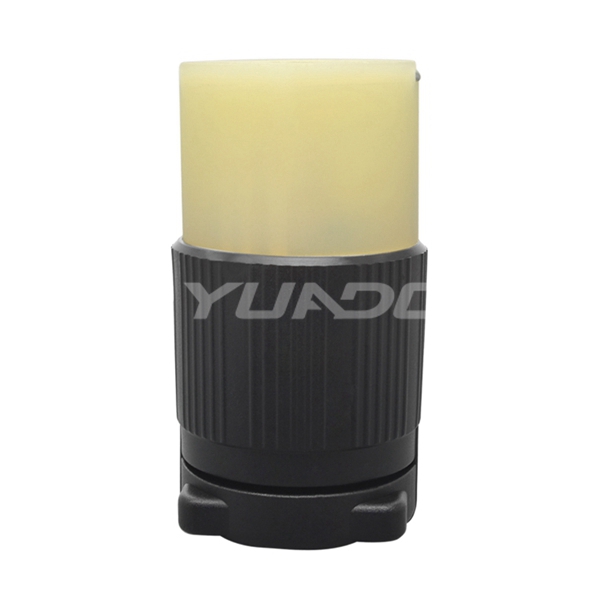

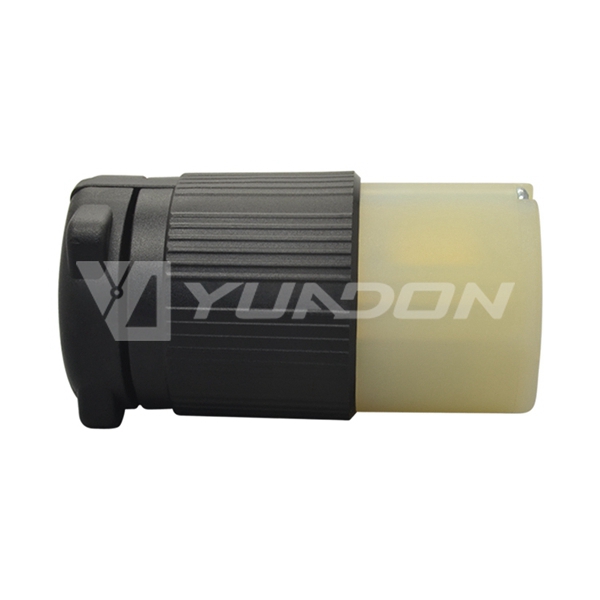

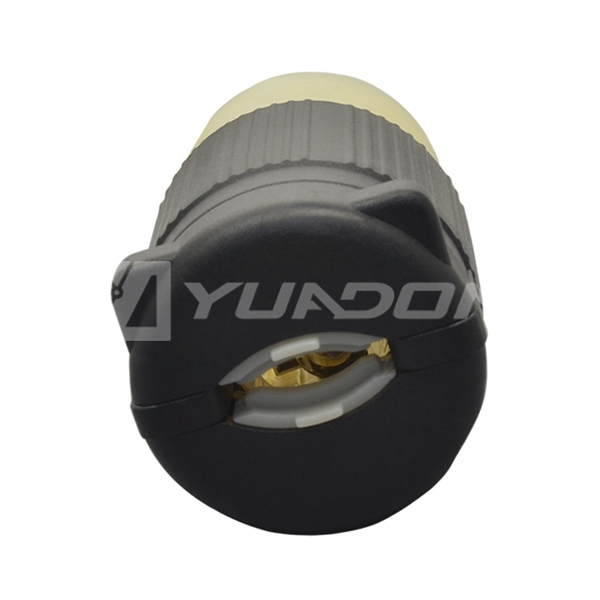

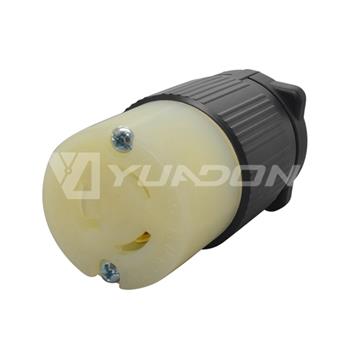

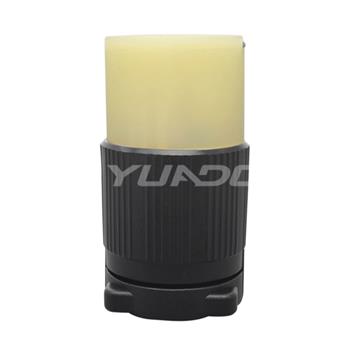

NEMA L5-15R Twist Lock Electrical Receptacle

3 Wire 15Amps 125V NEMA L5-15R Twist Lock Electrical Receptacle 15 amp twist lock receptacle

  • Item Name: YDL515C

  • NEMA Configuration : NEMA L5-15R

  • Rated Current: 15A

  • Rated Voltage: 125V

  • UL certificate: UL/cUL E350413

  • Sample day: 1-3 days

  • Lead time: 5-7days

  • Guarantee: 365 days

Production details



UL CUL Listed 15 Ampere 125 Volt NEMA L5-15R (L5-15C) Twist Locking Receptacle Connector, 2-Pole, 3-WIre Grounding ( 2P+E), Industrial Grade, UL 498 America Dupont Nylon Housing

Basic Information

Product Item

Locking Type Connector

Model number

YDL515C

NEMA Configuration

L5-15C

Wiring Scheme

2 Pole, 3 Wire Grounding

Amperage

15 Amp

Voltage

125V AC

Color

Black

Blade Holder Material

Nylon-Natural

Retainer Material

Clear Polycarbonate

Housing Material

Nylon-Black

Cord Clamp Material

Nylon-Black

Power contacts Material

.0315’’(0.8m/m) Brass Alloy

Terminal Screw Material

#8-32 Brass

Ground Screw Material

#8-32 Brass(Green)

Flammability

UL 94 V-0

Listings

UL/cUL  E350413

Rohs Compliant

Yes

Unit weight

71g/pcs

Package

200pcs/ctn=14.5KG 45*38*27cm/ctn

Shipping way

by air/sea/express

Place of Origin

Guangdong, China (Mainland)

Sample day

1-3 days

Mass order Lead time

5-7days



Features

1.Materials Involved:  imported America Dupont nylon and 100% full copper pin
Impact resistant body effectively resists damage from severe impact, abrasion and chemicals etc.
2. It is with UL or CUL certificate and UL File Number : E350413 (Standard: UL 498)
4. Ratings: 15A ,125V, AC 60HZ
5. Gender : Female, Locking Type Receptacle Connector
6. Terminal Accept : 18/3, 16/3, 14/3, 12/3 AWG Size Conductor
7. Strain Relief (Cord Grif Range):  0.300"-.650" DIA. N
8. Temperature Rating: 105℃
9. Flamability Rating: UL 94V-0
10. Application: Mounted on a 3-electrical wire cable or used in Industry, Lighting,Cabinets etc.

How to buy from us?

1. Please confirm the Products and quantities that you would like to purchase by contacting our sales persons.
2. We will send you a Proforma Invoice once we get your order list, and will help you calculate the best freight charge, by courier, by air or by sea if required.
3. After you send us the payment, please provide the bank copy if possible, so that we can start to arrange production asap.
4. As soon as the goods are shipped out, we will let you know the tracking number.
5. For after sales-service. Please contact the sales persons directly or contact us.

Notes

This charger adapter plug converts the power outlet only, Please don't use it with any high power appliances such as hair dryer, straightener and water heater. Please make sure your device carries an electrical converter when you travel to other countries with different electrical output.

Trade Condition

1. MOQ: 100 pcs / per model after sample order.

2. Payment Terms: T/T, Paypal and L/C for option.

a. By T/T: Bank transfer to YUADON company bank account
b. By Paypal: There will be 4% of total price as paypal fee.
c. By L/C(letter of credit): the order is more than USD10,000.

3. Shipment

We have a Strong cooperation with our forwarder, so we will give a best shipping cost to you
A. For small order, ship by DHL, EMS, UPS, FedEx international express.
B. For big order, ship by Air or by Sea.
