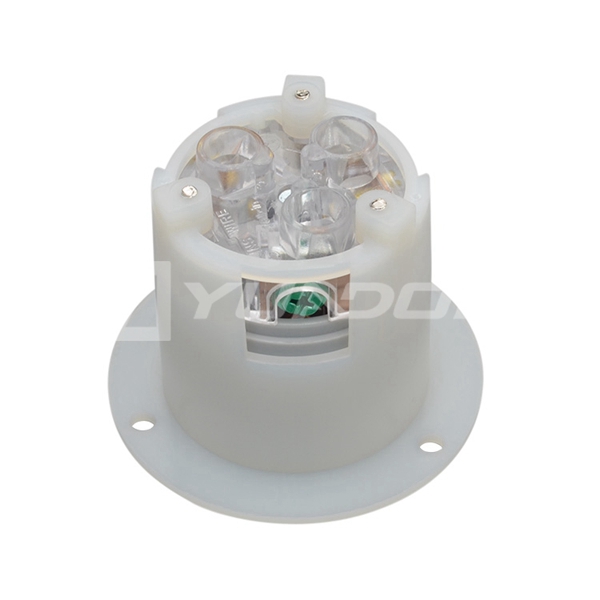

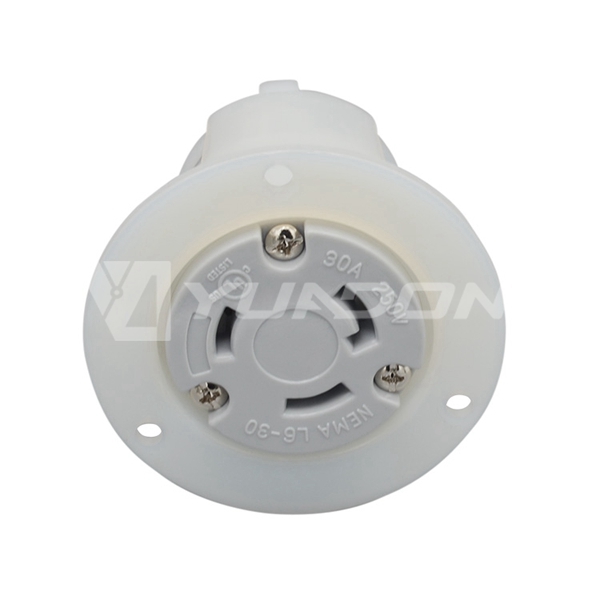

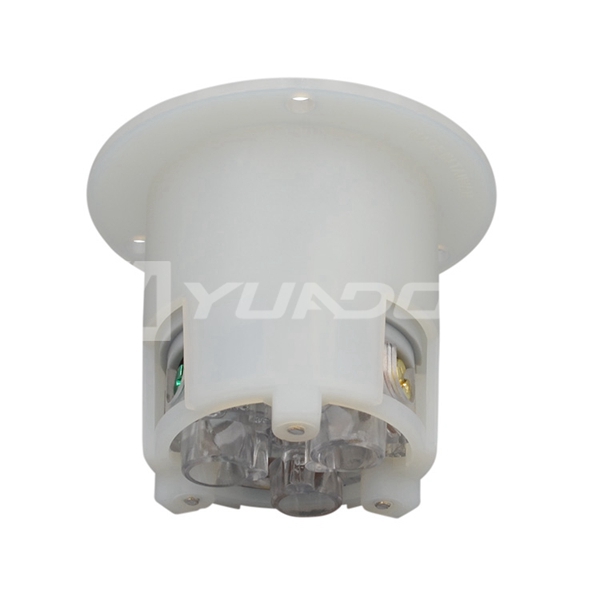

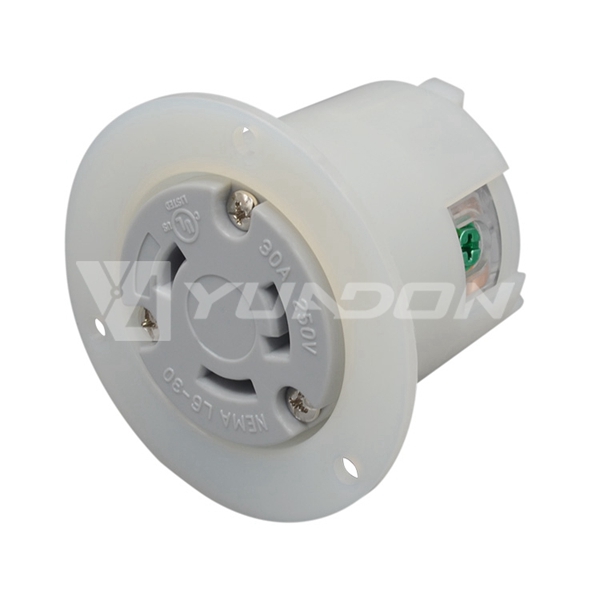

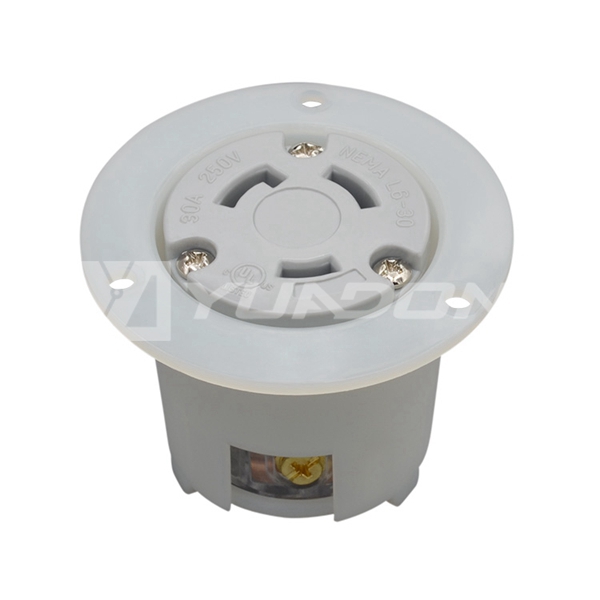

Locking Flanged Outlet NEMA L6-30R

Locking Flanged Outlet NEMA L6-30R

  • Model number: YDA-L630C

  • NEMA Configuration: L6-30R

  • Rated Current: 30A

  • Rated Voltage: 250V

  • Listings: UL / cUL  E350413

  • Sample day: 1-3 days

  • Lead time: 8-15days

  • Guarantee: 365 days

Production details



30 Ampere-250 Volt Flanged Panel Mount Locking Power Outlet NEMA L6-30R, 2 Pole, 3 Wire, Grounding (2P+E) ,L6-30 Inlet Receptacle, Industrial Grade

Basic Information

Product Item

Locking Flanged Outlet

Model number

YDA-L630C

NEMA Configuration

L6-30R

Wiring Scheme

2 Pole, 3 Wire Grounding

Amperage

30 Amp

Voltage

250V AC

Color

Black

Housing Material

Nylon-Black

Cord Clamp Material

Nylon-Black

Terminal Screw Material

#10-32 solid Brass

Ground Screw Material

#10-32 solid Brass(Green)

Contact Holder Material

Nylon-Natural

Listings

UL / cUL E350413

Rohs Compliant

Yes



Features

1. Made with Imported Dupont Nylon ( imported from America) resists damage from severe impact, abrasion and chemicals
2. Configuration : 2-Pole, 3-Wire Grounding, NEMA L6-30R Power Inlet Receptacle
3. It is with UL certificate and UL file number is E350413 (Standard: UL 498)
4. Ratings: 30A, 250VAC, AC 60HZ
5.It is suitable for industrial indoor and outdoor applications.
6.Easily mounts to panels or FS/FD boxes for a seamless user experience.
7.It is available with standard wire wells or with slots that accept fork terminals.
8. Application: it is widely used in power UPS, household back-up generator and other industrial purpose
9. Provide one-year guarantee service

How to buy from us?

1. Please confirm the Products and quantities that you would like to purchase by contacting our sales persons.

2. We will send you a Proforma Invoice once we get your order list, and will help you calculate the best freight charge, by courier, by air or by sea if required.

3. After you send us the payment, please provide the bank copy if possible, so that we can start to arrange production.

4. As soon as the goods are shipped out, we will let you know the tracking number.

5. For after sales-service. Please contact the sales persons directly or contact us.

Trade Condition

1. MOQ: 100 pcs / per model after sample order.

2. Payment Terms: T/T, Paypal and L/C for option.

a. By T/T: Bank transfer to YUADON company bank account
b. By Paypal: There will be 4% of total price as paypal fee.
c. By L/C(letter of credit): the order is more than USD10,000.

3. Shipment

We have a Strong cooperation with our forwarder, so we will give a best shipping cost to you
A. For small order, ship by DHL, EMS, UPS, FedEx international express.
B. For big order, ship by Air or by Sea.
