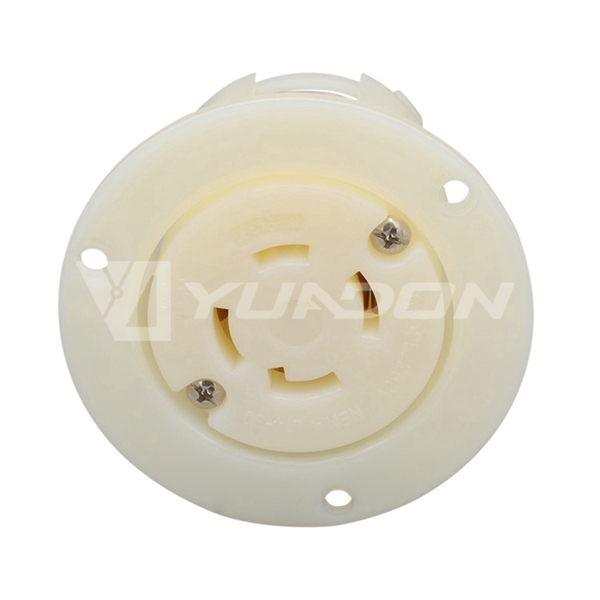

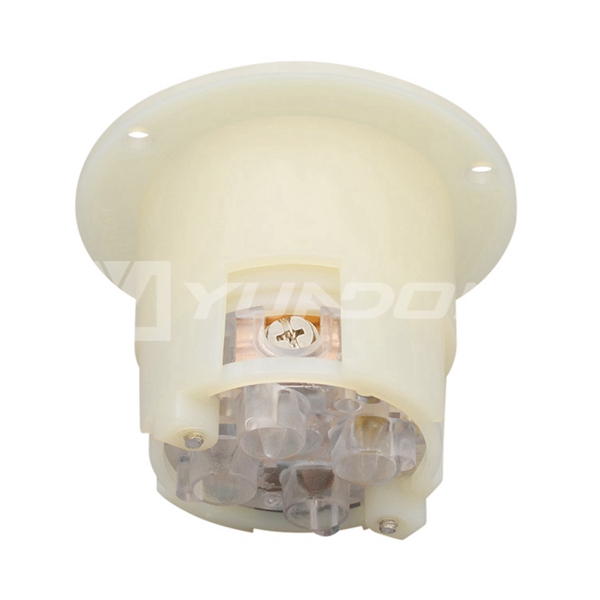

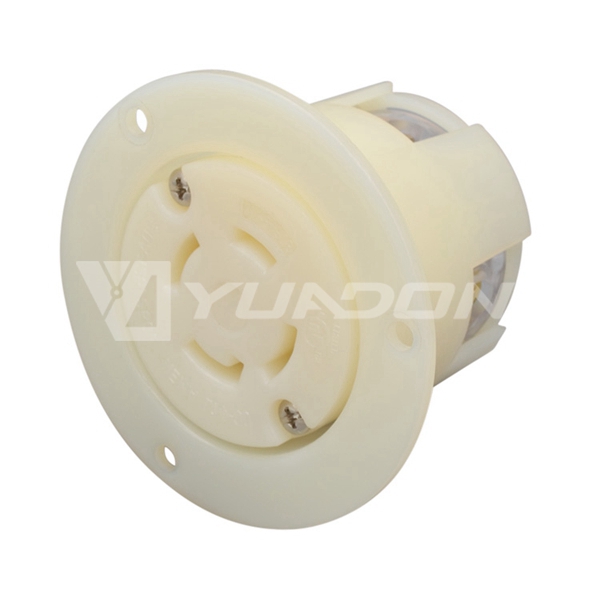

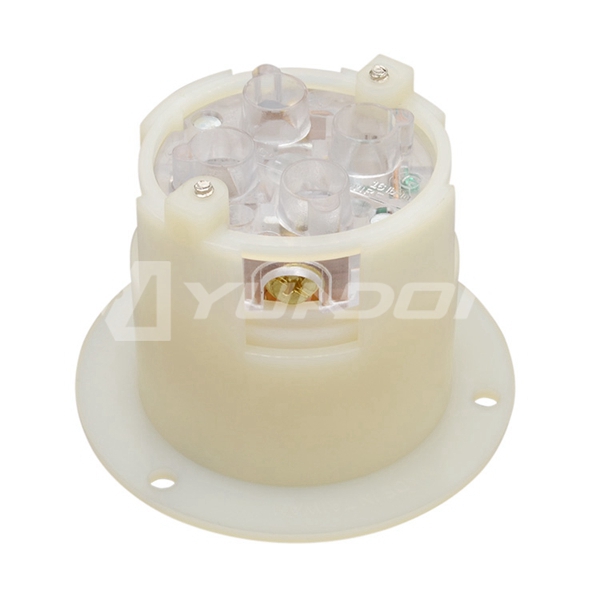

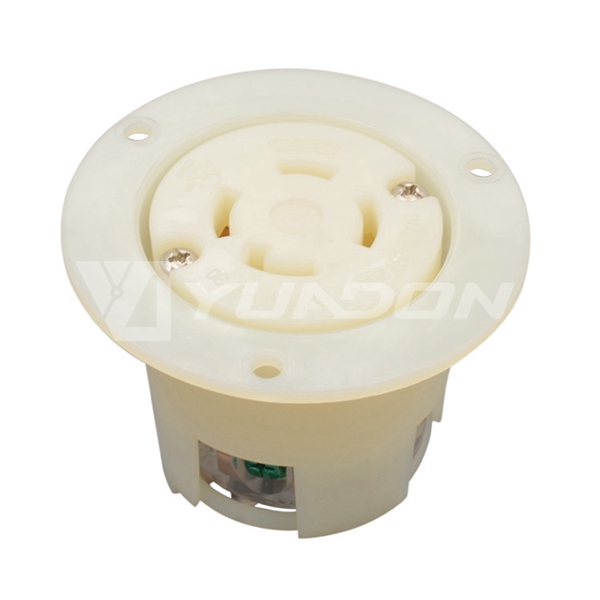

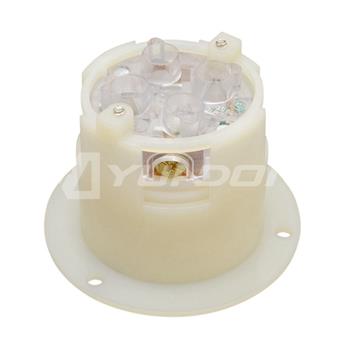

Locking Flanged outlet NEMA L14-30R

Locking Flanged outlet NEMA L14-30R

  • Model number: YDA-L1430C

  • NEMA Configuration: L14-30R

  • Rated Current: 30A

  • Rated Voltage: 250V

  • Listings: UL / cUL  E350413

  • Sample day: 1-3 days

  • Lead time: 8-15days

  • Guarantee: 365 days

Production details



Super Quality 30 Ampere-125 / 250 Volt (125V,30A) NEMA L14-30R Flanged Panel Mount Power Outlet, 3 Pole-4 Wire Grounding(3P+E), Impact Resistant Nylon Body, Specification Grade, White

Basic Information

Product Item

Locking Flanged Outlet

Model number

YDA-L1430C

NEMA Configuration

L14-30R

Wiring Scheme

3 Pole, 4 Wire Grounding

Amperage

30 Amp

Voltage

250V AC

Color

Black

Housing Material

Nylon-Black

Cord Clamp Material

Nylon-Black

Terminal Screw Material

#10-32 solid Brass

Ground Screw Material

#10-32 solid Brass(Green)

Contact Holder Material

Nylon-Natural

Listings

UL / cUL E350413

Rohs Compliant

Yes



Features

1. Materials Involved: Imported America Dupont Nylon and full copper

2. Configuration : 3-Pole, 4-Wire Grounding, NEMA L14-30R Twist Lock Power Inlet Receptacle

3. Ratings:125/250V; 30A

4. Suitable for indoor and outdoor industrial applications

5. Super tough nylon body resists damage from severe impact, abrasion and chemicals.

6. Twist lock feature makes for a more reliable connection in industrial and commercial applications where sudden movement and incidental impact can disconnect the non-locking plug.

7. Application: For use with Generator Transfer Switches or Power Inlet Plug to supply power to your Home Appliance, Generators, Boat or Trailer etc.

8. Provide one-year guarantee services

How to buy from us?

1. Please confirm the Products and quantities that you would like to purchase by contacting our sales persons.

2. We will send you a Proforma Invoice once we get your order list, and will help you calculate the best freight charge, by courier, by air or by sea if required.

3. After you send us the payment, please provide the bank copy if possible, so that we can start to arrange production.

4. As soon as the goods are shipped out, we will let you know the tracking number.

5. For after sales-service. Please contact the sales persons directly or contact us.

Trade Condition

1. MOQ: 100 pcs / per model after sample order.

2. Payment Terms: T/T, Paypal and L/C for option.

a. By T/T: Bank transfer to YUADON company bank account
b. By Paypal: There will be 4% of total price as paypal fee.
c. By L/C(letter of credit): the order is more than USD10,000.

3. Shipment

We have a Strong cooperation with our forwarder, so we will give a best shipping cost to you
A. For small order, ship by DHL, EMS, UPS, FedEx international express.
B. For big order, ship by Air or by Sea.
