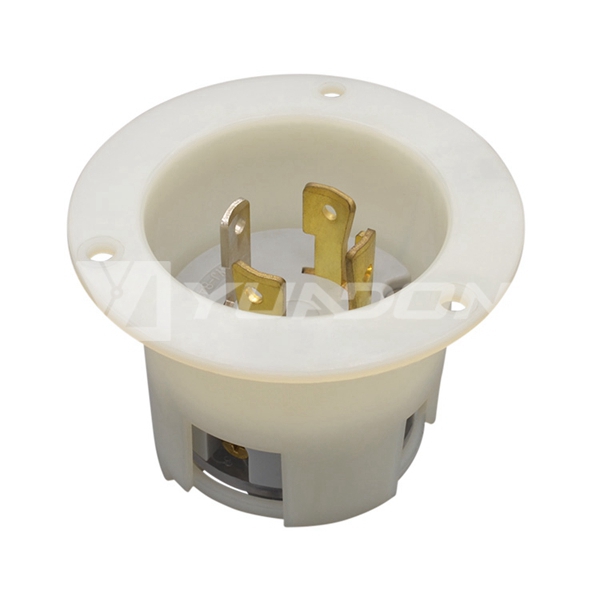

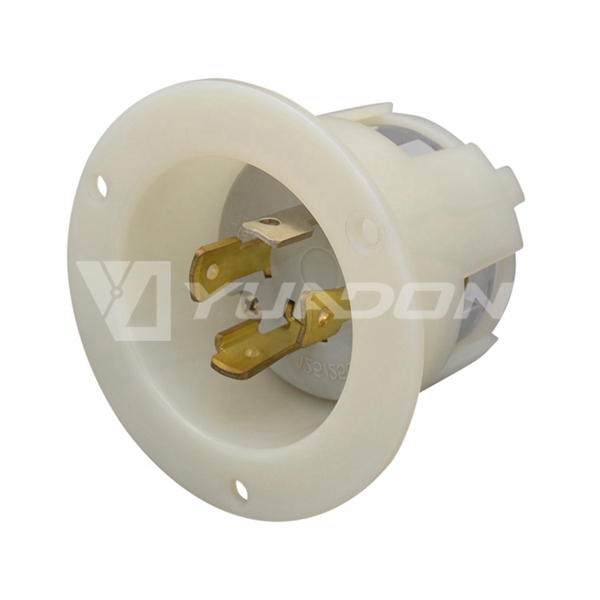

Locking Flanged intlet NEMA L14-30P

Locking Flanged intlet NEMA L14-30P

  • Model number: YDA-L1430P

  • NEMA Configuration: L14-30P
  • Rated Current: 30A

  • Rated Voltage: 250V

  • Listings: UL / cUL  E350413

  • Sample day: 1-3 days

  • Lead time: 8-15days

  • Guarantee: 365 days

Production details



Top Quality UL CUL CSA Listed 30 Amp 125/250V NEMA L14-30 Locking Flanged Inlet Plug for Generators Industry Purpose Dupont Nylon Construction Specification Grade, 3 Pole,4 wire Grounding (3P+E)

Basic Information

Product Item

Locking Flanged Inlet

Model number

YDA-L1430P

NEMA Configuration

L14-30P

Wiring Scheme

3 Pole, 4 Wire Grounding

Amperage

30 Amp

Voltage

250V AC

Color

Black

Housing Material

Nylon-Black

Cord Clamp Material

Nylon-Black

Terminal Screw Material

#10-32 solid Brass

Ground Screw Material

#10-32 solid Brass(Green)

Contact Holder Material

Nylon-Natural

Listings

UL / cUL E350413

Rohs Compliant

Yes





Features

1.America Dupont Nylon construction, resists damage from severe impact, abrasion and chemicals
2. Clear See-Thru Wiring Block & Color Coded Positive Crimp Lock Wire Clamps Provides Visual Inspection
3. NEMA Configuration : NEMA L14-30 Power Inlet ,3-Pole, 4-Wire ,Grounding
4. Certified by c( UL)us and UL file number is E350413 (Standard: UL 498)
5. Electric Ratings: 125/250 Volts, 30 Ampere
6. L14-30 30 Amp –7500 Watts 120/240 Volts 3-Pole 4-Wire Grounding Type
7. Accommodates 8-14 AWG Gauge Wiring
8. Environmental Specifications Flammability: Meets UL94 requirements; V2 rated
9. Temperature Rating: -40°C to 60°C (-40°F to 140°F)
10. Temperature Rise: Max. 30ºC (86°F) after 50 cycles of overload at 150% of rated current (DC)
11. Electrical Specifications Dielectric Voltage: Twice the device rating + 1000V per UL498
12. Mechanical Specifications Terminal Accommodation: #16 - #8 AWG
13. Mounting holes interchangeable with competitive units
14. Individual wiring compartments with tapered channel for easy insertion of wires
15. Application: Generators, Industry,Dryers etc
