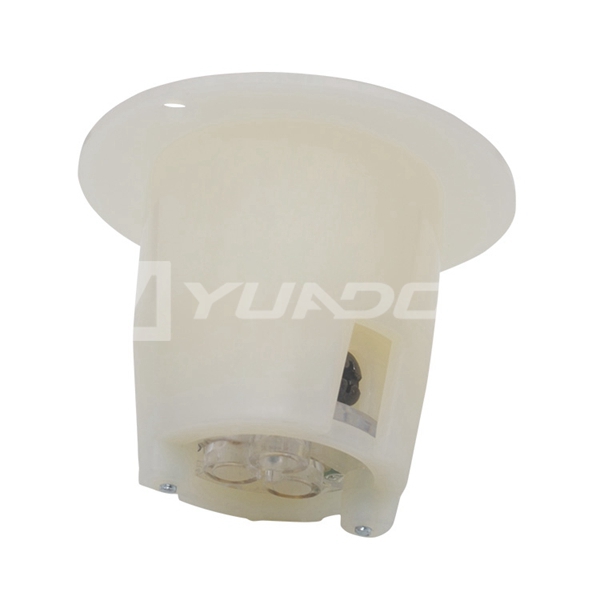

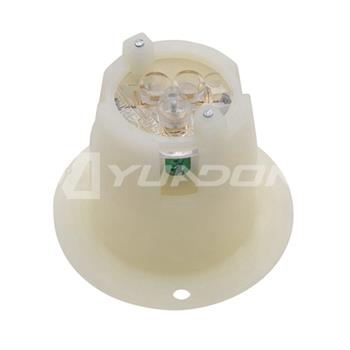

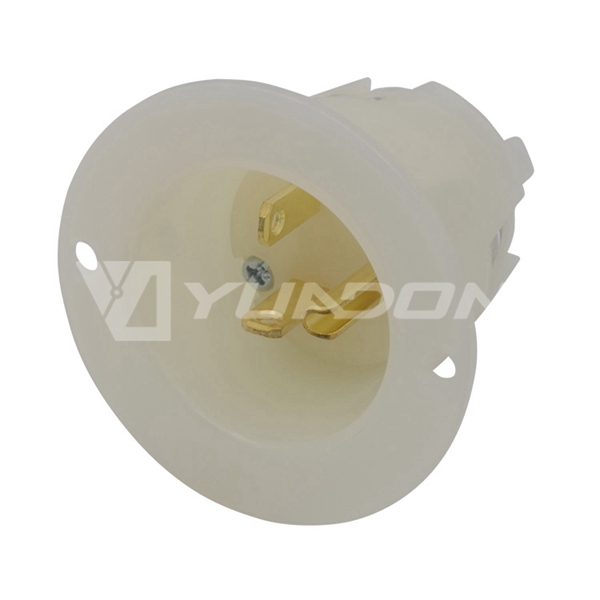

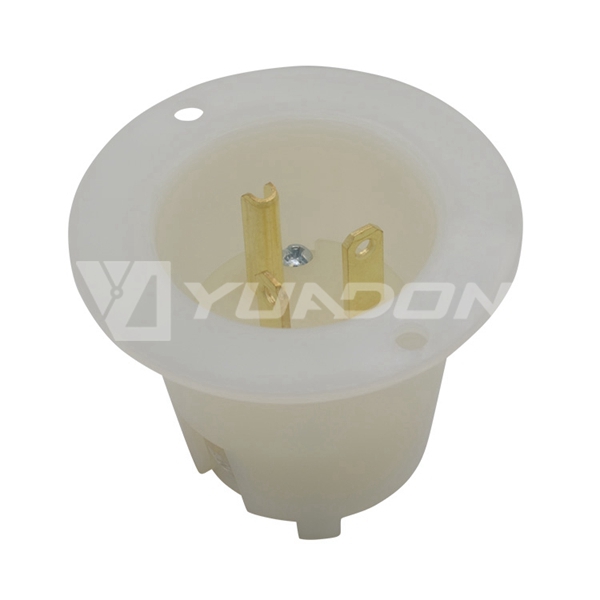

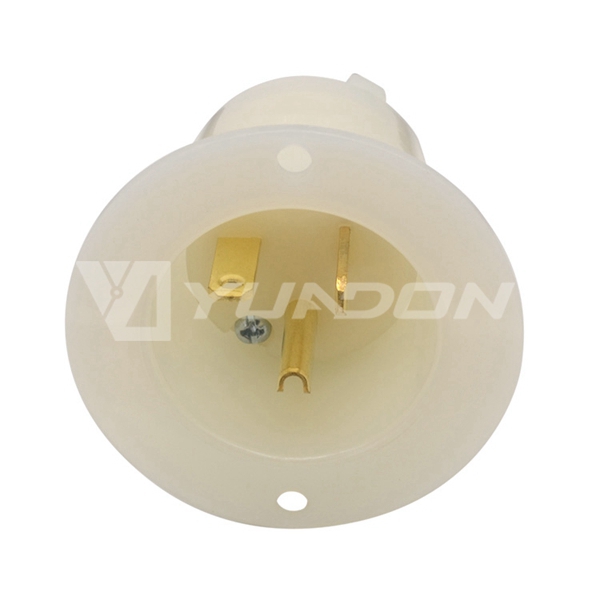

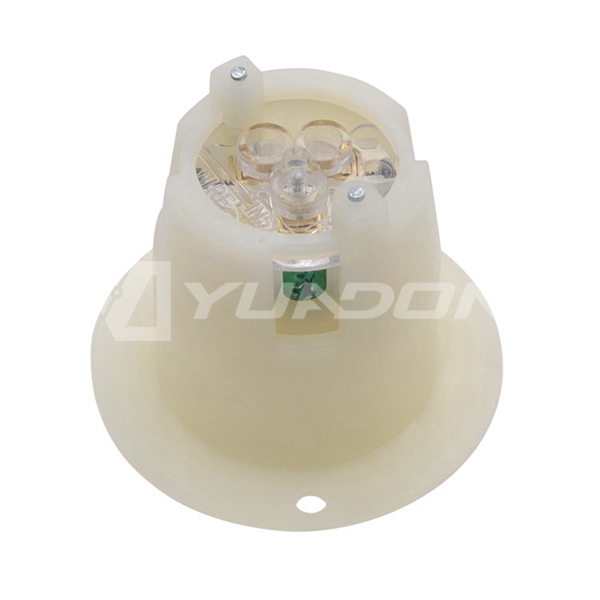

Flanged Inlet NEMA 6-20P

Flanged Inlet NEMA 6-20P

  • Model number: YDA-620P

  • NEMA Configuration: 6-20P

  • Rated Current: 20A

  • Rated Voltage: 250V

  • UL certificate: UL/cUL E350413
  • Sample day: 1-3 days

  • Lead time: 8-15days

  • Guarantee: 365 days

Production details


Top Quality UL CUL CSA Listed 20 Amp 250V NEMA 6-20 Flanged Inlet Power Plug Dupont Nylon Construction Specification Grade, 2 Pole,3 wire Grounding (2P+E)

Basic Information

Product Item

Flanged Inlet

Model number


NEMA Configuration


Wiring Scheme

2 Pole, 3 Wire Grounding


20 Amp


250V AC



Housing Material


Cord Clamp Material


Terminal Screw Material

#8-32 solid Brass

Ground Screw Material

#8-32 solid Brass(Green)

Contact Holder Material


Power Contacts Material

040 (1.0m/m) Copper Alloy


UL / cUL E350413

Rohs Compliant




1.America Dupont Nylon construction, resists damage from severe impact, abrasion and chemicals
2. Clear See-Thru Wiring Block & Color Coded Positive Crimp Lock Wire Clamps Provides Visual Inspection
3. NEMA Configuration : NEMA 6-20 Power Inlet ,2-Pole, 3-Wire ,Grounding
4. Certified by c( UL)us and UL file number is E350413 (Standard: UL 498)
5. Electric Ratings: 250 Volts, 20 Ampere
6. Mechanical Specifications Terminal Accommodation: #14 AWG
7. Environmental Specifications Flammability: Meets UL94 requirements; V2 rated
8. Temperature Rating: -40°C to 105°C (-40°F to 221°F)
9. Temperature Rise: Max. 30ºC (86°F) after 50 cycles of overload @ 150% of rated current (DC)
10. Dielectric Voltage: Twice the device rating + 1000V per UL498

How to buy from us?

1. Please confirm the Products and quantities that you would like to purchase by contacting our sales persons.
2. We will send you a Proforma Invoice once we get your order list, and will help you calculate the best freight charge, by courier, by air or by sea if required.
3. After you send us the payment, please provide the bank copy if possible, so that we can start to arrange production asap.
4. As soon as the goods are shipped out, we will let you know the tracking number.
5. For after sales-service. Please contact the sales persons directly or contact us.

Trade Condition

1. MOQ: 100 pcs / per model after sample order.

2. Payment Terms: T/T, Paypal and L/C for option.

a. By T/T: Bank transfer to YUADON company bank account
b. By Paypal: There will be 4% of total price as paypal fee.
c. By L/C(letter of credit): the order is more than USD10,000.

3. Shipment

We have a Strong cooperation with our forwarder, so we will give a best shipping cost to you
A. For small order, ship by DHL, EMS, UPS, FedEx international express.
B. For big order, ship by Air or by Sea.
