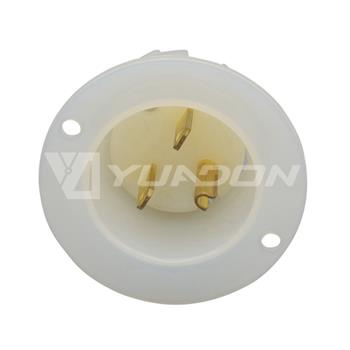

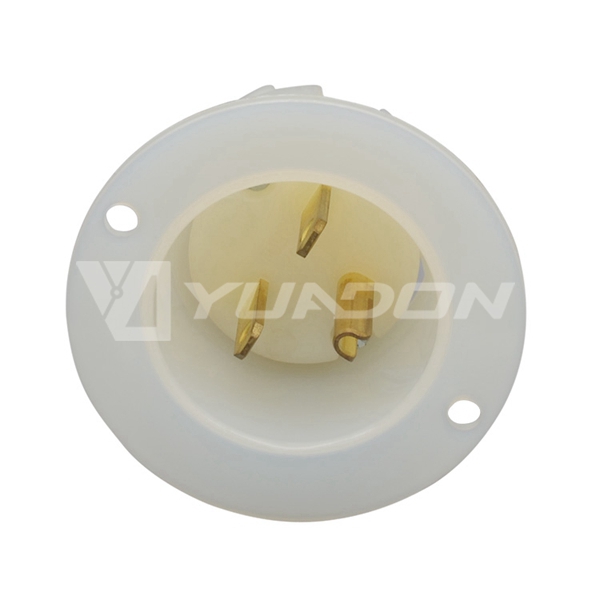

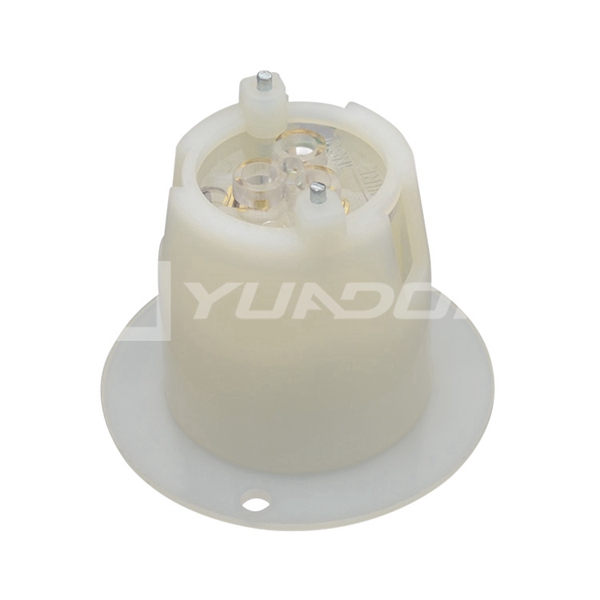

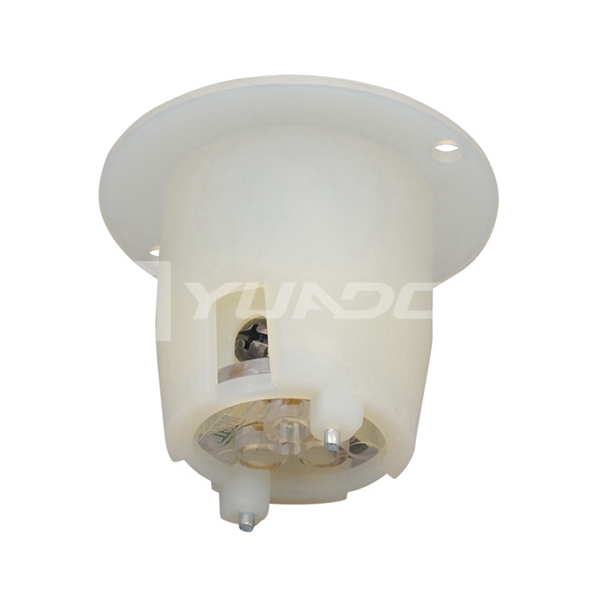

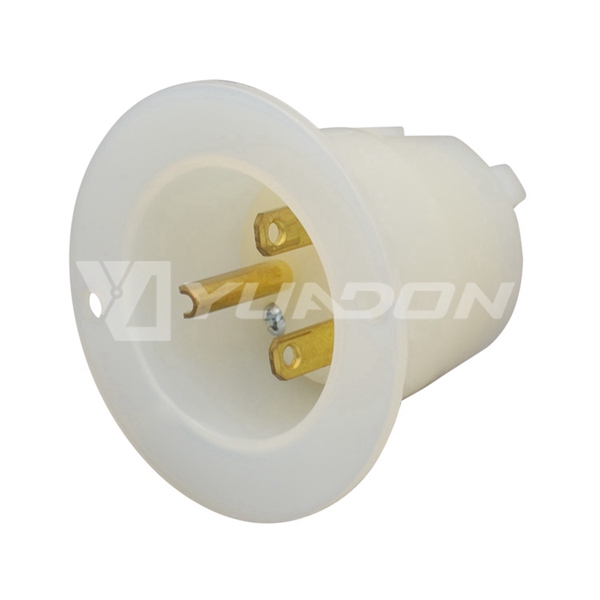

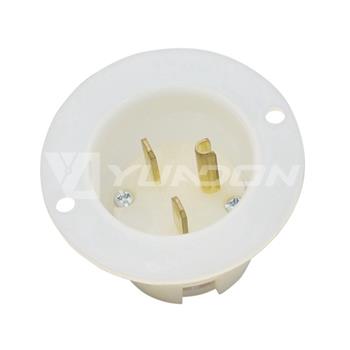

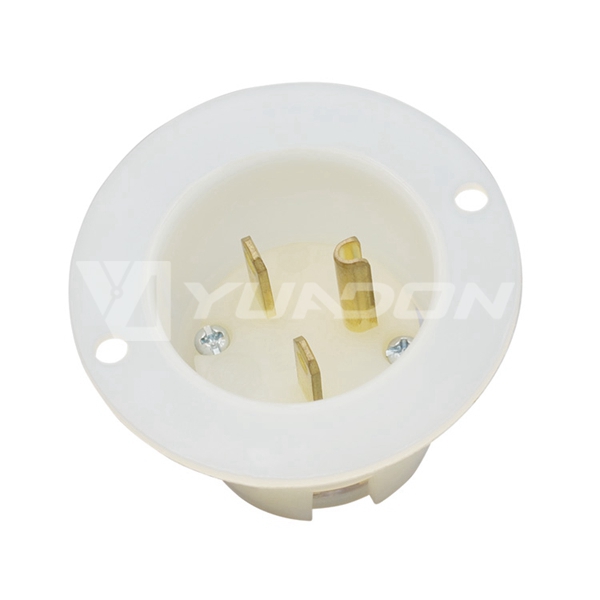

NEMA 6-15 Flanged Inlet

NEMA 6-15P Flanged Inlet

  • Model number: YDA-615P

  • NEMA Configuration: 6-15P

  • Rated Current: 15A

  • Rated Voltage: 250V

  • Certificate: UL / cUL  E350413

  • Sample day: 1-3 days

  • Lead time: 8-15days

  • Guarantee: 365 days

Production details



UL CUL CSA Listed 250V 15A Flanged Panel Mount Power Inlet NEMA 6-15P, 2 Pole 3 Wire Grounding Impact Dupont Nylon Body Industrial Grade

Basic Information

Product Item

Flanged Inlet

Model number

YDA-615P

NEMA Configuration

6-15P

Wiring Scheme

2 Pole, 3 Wire Grounding

Amperage

15 Amp

Voltage

250V AC

Color

Black

Housing Material

Nylon-Black

Cord Clamp Material

Nylon-Black

Terminal Screw Material

#8-32 solid Brass

Ground Screw Material

#8-32 solid Brass(Green)

Contact Holder Material

Nylon-Natural

Power Contacts Material

040 (1.0m/m) Copper Alloy

Listings

UL / cUL E350413

Rohs Compliant

Yes



Features

1.Dupont Nylon Body ( imported from America) resists damage from severe impact, abrasion and chemicals
2. It is certified by UL (CUL/CSA) and the UL file number is E350413.(Standard: UL 498)
3. NEMA Configuration : NEMA 6-15P,straight blade flanged inlet, 2-Pole, 3-Wire Grounding
4. Ratings: 15A, 250VAC, 60HZ
5. Each is individually packaged with mounting screws
6. Heavy, solid brass blades held tightly in individual module configurations
7. Individual deep-funneled rectangular-shaped champed wire wells. Clear housing allows inspection of wire termination and provides molded-in wire strip gauge
8.Wire clamps move in individual chamber - provide positive crimp lock without cutting wire strand
9. Captive, color-coded brass #8 terminal screws
10.NEMA configuration and rating molded on front
11. It is suitable for industrial indoor and outdoor applications.
12. Provide one-year guarantee service

How to buy from us?

1. Please confirm the Products and quantities that you would like to purchase by contacting our sales persons.
2. We will send you a Proforma Invoice once we get your order list, and will help you calculate the best freight charge, by courier, by air or by sea if required.
3. After you send us the payment, please provide the bank copy if possible, so that we can start to arrange production asap.
4. As soon as the goods are shipped out, we will let you know the tracking number.
5. For after sales-service. Please contact the sales persons directly or contact us.

Notes

This charger adapter plug converts the power outlet only, Please don't use it with any high power appliances such as hair dryer, straightener and water heater. Please make sure your device carries an electrical converter when you travel to other countries with different electrical output.

Trade Condition

1. MOQ: 100 pcs / per model after sample order.

2. Payment Terms: T/T, Paypal and L/C for option.

a. By T/T: Bank transfer to YUADON company bank account
b. By Paypal: There will be 4% of total price as paypal fee.
c. By L/C(letter of credit): the order is more than USD10,000.

3. Shipment

We have a Strong cooperation with our forwarder, so we will give a best shipping cost to you
A. For small order, ship by DHL, EMS, UPS, FedEx international express.
B. For big order, ship by Air or by Sea.
